Plateau Oxygen Machine for Reliable Oxygen Supply in Thin Air Environments

Place of Origin:Jiangsu
Brand Name:Luoming
Certification:ISO CE
Model Number:LMO
Minimum Order Quantity:1 set
Payment Terms:L/C,T/T
Supply Ability:100 sets per month
Product Details
Highlight:

Plateau oxygen machine for high altitude

,

Industrial oxygen generator with warranty

,

Reliable oxygen supply for thin air
Name: Industrial Oxygen Generator
Applicable Industries: Shrimp/Fish Farm,etc.
Material: Carbon Steel/Stainless Steel
Guarantee: One Year
Operation: Automatic
Port: China Port
Service Life: More Than 10years
Technology: Pressure Swing Adsorption (PSA)
Custom Processing: Yes
After-Sales Service Provided: Video Technical Support Online Support
Product Description
Plateau Oxygen Machine for Reliable Oxygen Supply in Thin Air Environments

Jiangsu Luoming's oxygen generation equipment harnesses cutting-edge Pressure Swing Adsorption (PSA) technology to yield top-grade oxygen, emerging as a key solution for the oil and gas sector. This innovative system takes clean compressed air as its feedstock and adopts a high-efficiency zeolite molecular sieve for adsorption.

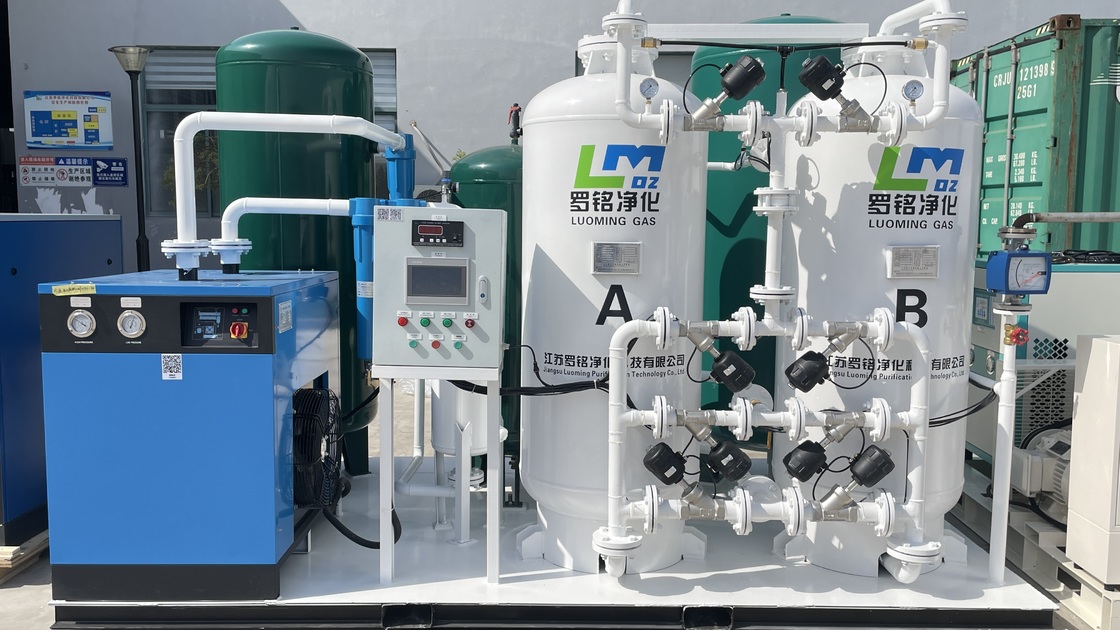

Jiangsu Luoming Oxygen Generator Machine
Product Specifications
Model Purity Flow Outlet
LMO-193±2%1Nm3/hRegular outlet pressure 1-5Mpa adjustable
LMO-593±2%5Nm3/h
LMO-1093±2%10Nm3/h
LMO-1593±2%15Nm3/h
LMO-2093±2%20Nm3/h
LMO-2593±2%25Nm3/h
LMO-3093±2%30Nm3/h
LMO-4093±2%40Nm3/h
LMO-5093±2%50Nm3/h
LMO-6093±2%60Nm3/h
LMO-7093±2%70Nm3/h
LMO-8093±2%80Nm3/h
LMO-9093±2%90Nm3/h
LMO-10093±2%100Nm3/h
LMO-11093±2%110Nm3/h
LMO-12093±2%120Nm3/h
LMO-13093±2%130Nm3/h
LMO-14093±2%140Nm3/h
LMO-15093±2%150Nm3/h
LMO-18093±2%180Nm3/h
LMO-20093±2%200Nm3/h
LUOMING GAS PSA Technology Diagram
PSA Technology Introduction

PSA (Pressure Swing Adsorption) Technology represents a revolution in non-cryogenic air separation and oxygen generation. This advanced system uses a special grade of Zeolite Molecular Sieve (ZMS) for efficient oxygen production.

  • The compressed air passes through a Twin Tower PSA module with automatic changeover valves
  • After processing through a Refrigerated Dryer, the air is completely dried
  • The dried compressed air contacts the Zeolite Molecular Sieves (ZMS) bed
  • ZMS has the unique property of preferential adsorption of nitrogen molecules
  • The resulting oxygen gas is sent to a surge vessel with maintained minimum pressure via a Back Pressure Regulator
Oxygen Generator System Components
Frequently Asked Questions
Q: What is the terms of payment?
A: T/T, L/C, Western Union etc.
Q: How long is your delivery time?
A: Generally it is 10-50 working days depending on your order.
Q: How to get a prompt quotation?

A: When you send us inquiry, please kindly provide the following technical information:

  • The oxygen generator is customized, please provide:
    1. Oxygen purity 93%±2%,is it ok for you? or other purity?
    2. Capacity_______Nm3/h (If need to fill in cylinders, please confirm how many do you need to fill?)
    3. Discharge pressure _______bar (If fill in cylinders, please confirm the cylinder pressure)
    4. Local altitude______m
    5. Local voltage _______V (1P&3P)_________HZ

We will recommend the most suitable equipment according to your specific requirements.
